Product overview

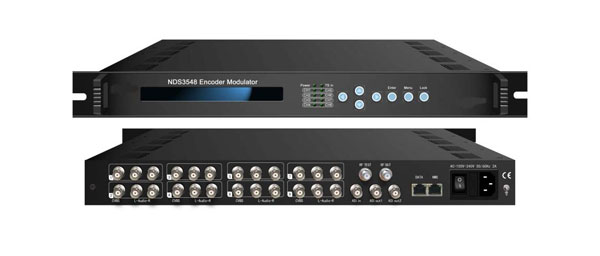

NDS3548 8 in 1 Encoder/Modulator is an all-in-one device integrated encoding multiplexing and modulation functions in one standard 1U case. It can convert 8 CVBS signals and 1 ASI input to DVB-C (DVB-T Optional) RF out. It is also equipped with 2 ASI ports and IP port to output TS in MPTS or SPTS.
The signals source could be from satellite receivers, closed-circuit television cameras and etc. its output signal is to be received by DVB-C/T standard TVs or DVB-C/T STBs.
The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital.

Key Features

• Support 8 CVBS input and 1 ASI Input for re-mux
• Mpeg2 video encoding
• Support PAL, NTSC SD signal
• 1*DVB-C or 2*DVB-T RF output optional
• ASI and IP (MPTS or 8xSPTS over UDP) output
• LCN support (Logical Channel Number)
• Excellent modulation quality MER≥42dB
• LCD display, Remote control and firmware
• Web NMS Management
• Updates via web/Ethernet
• Lowest cost per channel --- breakthrough price
