Outline

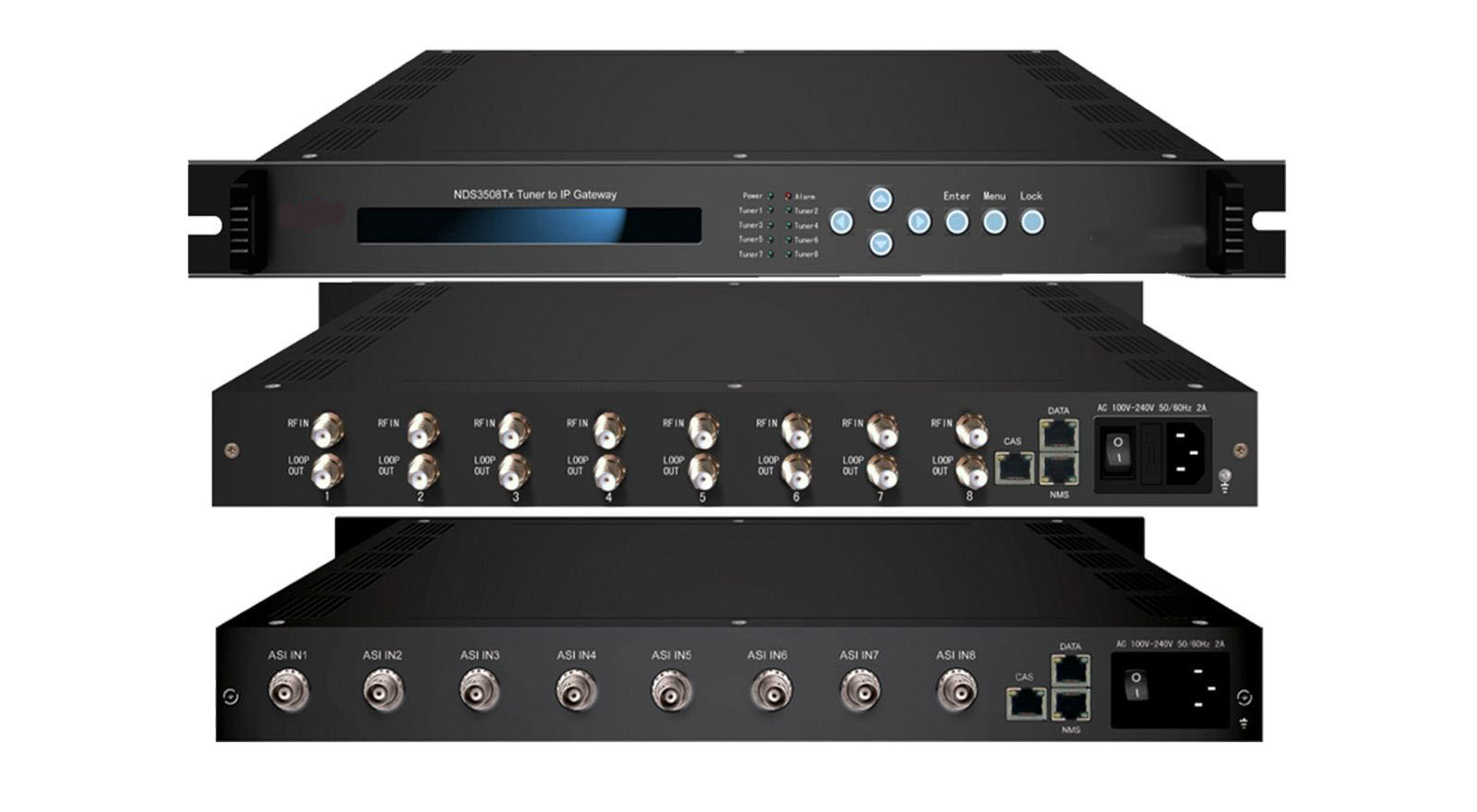

NDS3508Tx (NDS3508A) Tuner (ASI) to IP Gateway is a head-end interface conversion device. It supports SPTSx32 or SPTSx20 (For version with BISS function) output.
It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP, RTP/RTSP protocol).
BISS function is now embedded to descramble your tuner input programs.

Feature

• Integrated with demodulation and gateway function
• Support 8 channels tuner (ASI) input
• Support BISS descrambling (Up to 120Mbps)
• 1 GE output, maximum output bit-rate is 800Mbps
• SPTSx32 or SPTSx20 (For version with BISS function) over UDP, RTP/RTSP, unicast and multicast
• Support LCD display and keyboard
• Support SNMP/Web operation
