Product Introduction

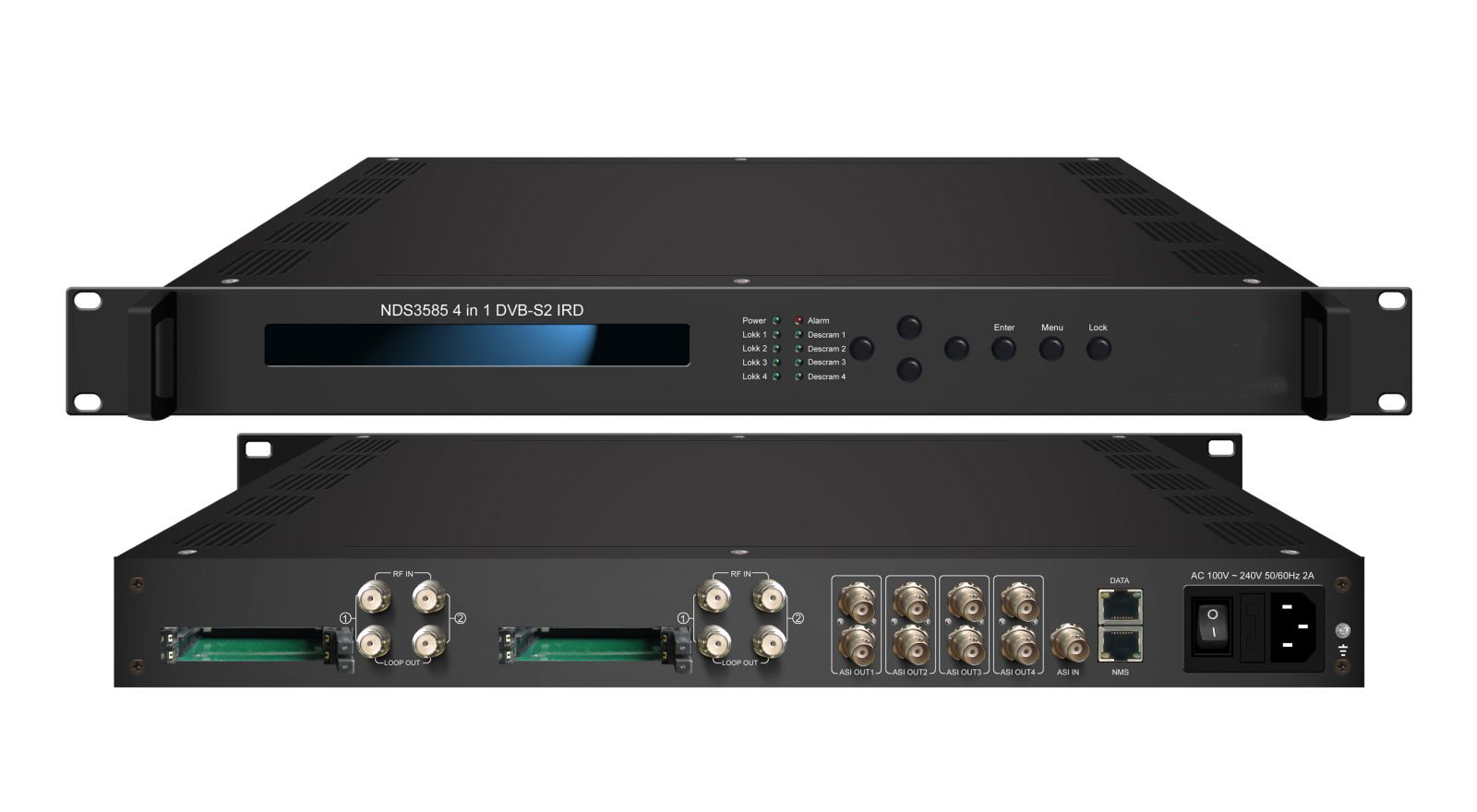

NDS3585 IRD is DEXIN’s new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output. It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. To meet customers’ various requirements, NDS358X is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.

Features

• 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
• 1 ASI & 4 IP (UDP) input
• One CAM can decrypt multiple programs from Tuners/ASI/IP
• IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;
• 4 groups of independent ASI out for tuner/IP pass through (one-to-one)
• Support maximum 128 PID mapping per input
• LCD display, Remote control and Firmware, web NMS management
• Updates via web
• Best quality and breakthrough price
