Outline

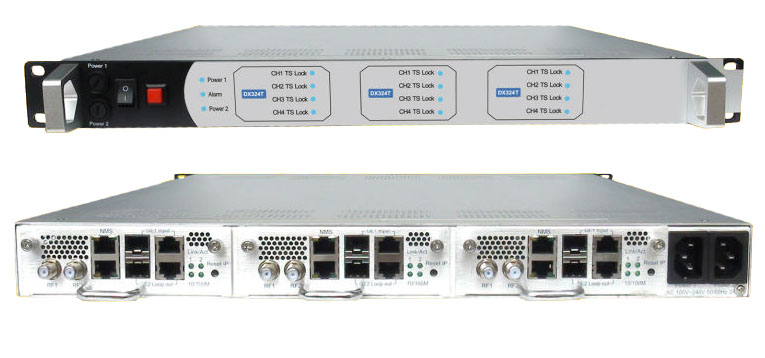

DX324T IP Mux and modulation module is the latest generation mux-modulating all-in-one device. The modular design of this device makes each of its daughter cards stand-alone when operating. Each daughter card can receive the UDP/RTP format TS through GE port, and support up to 256 different IP address or port number. It’s like the all-in-one device combined with 4 multiplexers, (256 channels inputs) and 4 DVB-T modulators, which can output 4 carriers (40M~960M) through the two RF output interfaces. Additionally, 1U chassis supports up to 3 modules (12 channels mux-modulation) while the 4U chassis supports up to 12 modules (48 channels mux-modulation). This DX324T IP Mux and modulating module has excellent integrated level, powerful performance and low cost, which is especially adequate for the new generation IP CATV system.

Features

• Dual power supply
• 1 GE input, RJ45interface or SFP
• Supports up to 256 channels TS input over UDP/RTP, MPTS or SPTS
• Supports unicast and multicast, supports IGMP v2v3
• Max 840Mbps for all input
• Supports 4 channels multiplexing
• Supports accurate PCR adjusting
• Supports PID filtering, remapping and PSI/SI editing
• Supports up to 180 PIDS remapping per channel
• 4 DVB-T carriers output,compliant to ETSI EN300 744 standard
• RF output frequency range: 40~960Mhz, 1Khz stepping
• RF output level: -16~0dbm (per DVB-T carrier), 0.5db stepping
• Excellent RF performance, MER≥40db
• Support SNMP
• Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
