Product Overview

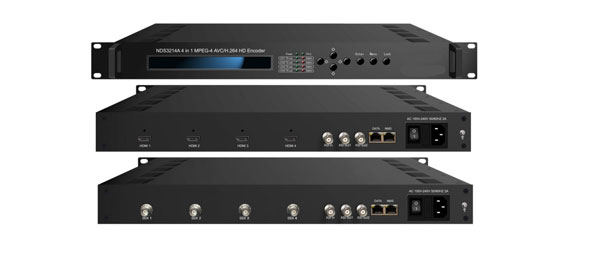

NDS3214H (HDMI IN) 4 in 1 MPEG-4 AVC/H.264 HD encoder is a professional HD audio & video encoding and multiplexing device with powerful functionality. It has 4 channel HDMI input interfaces, supporting MPEG-4, AVC/H.264 High Profile code format. This device can simultaneously encode 4 channel HD programs; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

Features

• H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
• Audio MPEG1 Layer 2, HE-AAC V2 (optional)
• 4 channel HDMI inputs
• 1 ASI input supports multiplexing
• 720P, 1080I HD video format support
• MPTS ASI output
• MPTS over UDP unicast/multicast output
• LCD / keyboard operating
• NMS support
