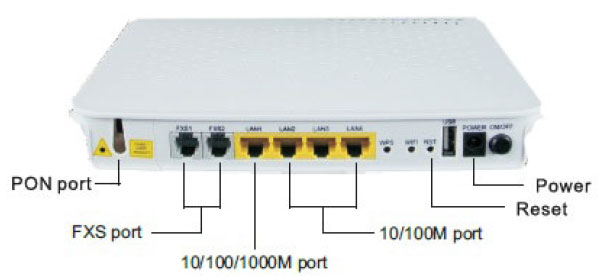

ONU-8080?1GE+3FE?is an EPON user terminal, which meets the SOHO broadband access, FTTH broadband speed ,FFTH/FTTD of cable-television operator. The equipment based on mature, stable, cost-effective Gigabit EPON technology combines Gigabit Ethernet switching technology, WIFI . It has high reliability, ease of administration and good QOS. The technology performance meets the IEEE802.3ah, China Telecom EPON equipment technical requirements (V2.1) specification requirements.

Features:

• Full speed without blocking exchange
• 8K MAC Address table
• Support Full Range VLAN ID
• Support QinQ VLAN?1:1VLAN?VLAN Trunk etc.
• Support port monitor, port mirror ,port speed limit, port SLA etc.
• QoS based on interface,IEEE802.1p, IPV4(ToS),Diff-Serv,IPV6,802.1Q VLANID, destination MAC or source MAC.
• The Ethernet interfaces according to the specifications of the IEEE802.3.
• 128-bitAES encryption algorithm.
• According to 802.1x remote management and user authentication
• Support CTC2.1 standard
• Complies with 2.4GHz IEEE802.11n v2.0 and backward compatible with IEEE 802.11b/g standards
• Supports NAT/NAPT IP sharing
• WAN Protocols: PPPoE /Static IP/PPTP/DHCP
• Supports advanced 2T2R MIMO technology to enhance the throughput and coverage range significantly
• High speed data rate - up to 300Mbps
• Supports Virtual Server and DMZ
• Supports Wi-Fi Protected Setup (WPS)with reset button
• Supports 64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
• Supports WMM function to meet the multimedia transmission requirement
• Supports WDS mode
• Supports Special Applications (Port Triggers)
• Supports DDNS (DynDNS, TZO), and QoS
• Supports MAC/IP filtering and URL blocking
• Supports DHCP server and Anti-Do firewall
