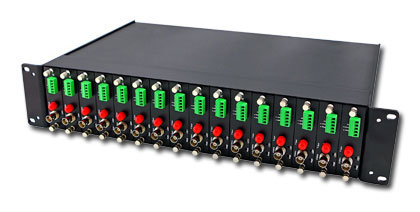

2U chassis of video digital optical converter is a kind of standard chassis, which could meet the users’ demand of concentration and centralized management.
Power supply could achieve uninterrupted work, and the system is equipped with over-temperature, over-voltage, over-current protection devices. The internal part adopts voltage compensation technology, ensuring that the optical convertor could obtain reliable and accurate voltage power supply. It is widely used in fiber-optic communication devices for centralized intelligence management and machine rooms for centralized management and control.

Features

• 8-bit digitally encoded and non-compression video transmission
• Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS- 422, and RS-485 data protocols
• Support any high-resolution video signal
• Automatic compatible PAL, NTSC and SECAM video system
• Power supply and other parameter state indication, which can monitor the operation condition of system
• Support no-damage regenerative trunk of video
• Constant input optical power, and large dynamic range, no Electrical or Optical Adjustments Required.
• Special ASIC design.
• Industry-grade of operating temperature from -10 to 75 which is applied to the different working environment
• Hot-swap function
• Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis.
