Features

• Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX Ethernet standard

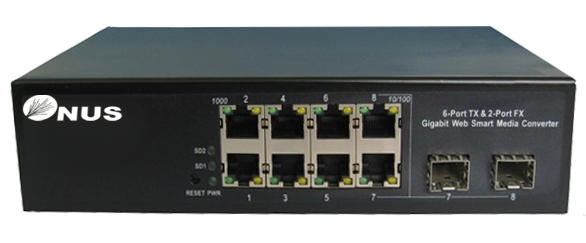

• 8-Port 10/100/1000Mbps Gigabit Ethernet ports
• 2 mini-GBIC/SFP slots, shared with Port-7 and Port-8
• Each Switching port supports auto-negotiation-10/20, 100/200 and 1000/2000Mbps supported
• Auto-MDI/MDI-X detection on each RJ-45 port supports CSMA/CD protocol
• Prevents packet loss with back pressure (Half-Duplex) and 802.3x PAUSE frame flow control (Full-Duplex)
• 8K MAC address table, automatic source address learning and ageing
• 16Gbps switch fabric, non-blocking switch architecture
• 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
