Introduction

Gigabit media converter series are designed to convert a 10/100/1000BASE-T signal to a 1000BASE-SX/LX signal. It is used to extend the connection distance between two Gigabit Ethernet Twisted-pair devices via fiber cable transparently without performance degradation.

Features :

• In accordance with IEEE802.3 10Base-T, IEEE802.3u 100Base-T, IEEE802.3ab 1000Base-T and IEEE802.3z
• 1000Base-FX
• Supported Ports: LC for optical fiber; RJ45 for twisted pair
• Auto-adaptation rate/full/half-duplex mode supported at twisted pair port
• Auto MDI/MDIX supported without need of cable selection
• Up to 6 LEDs for status indication of optical power port and UTP port, Up to 1024 MAC addresses supported

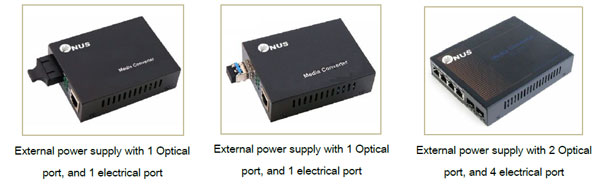

• External or built-in DC power supplies provided
• 512 kb data storage integrated, and 802.1X original MAC address authentication supported
• Conflicting frames detection in half-duplex and flow control in full duplex supported
